LCD Display Board

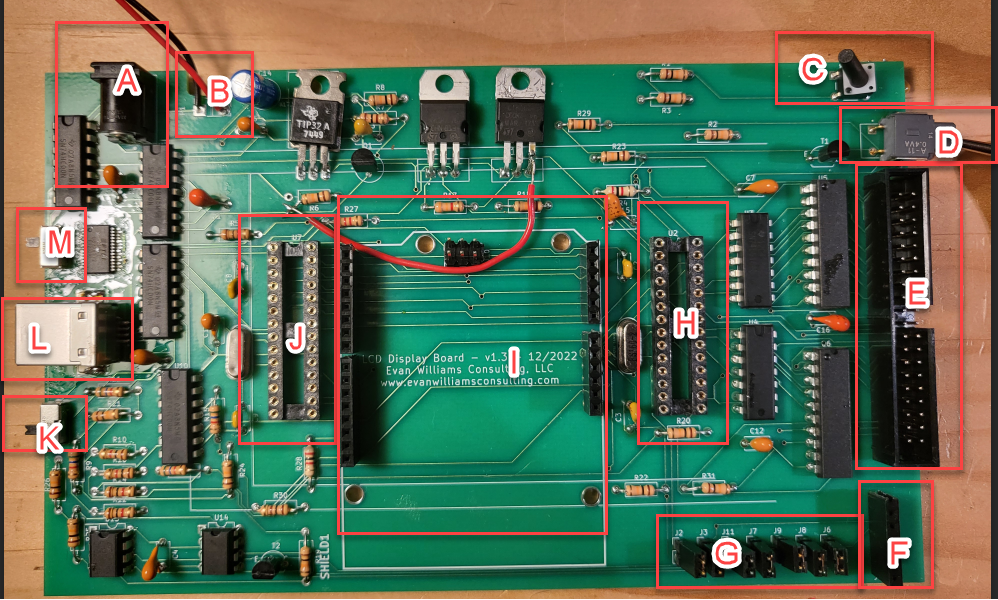

LCD Display Board v1.3
  • Works with standard 40 pin TFT LCD Displays (8080 Interface)
  • Board Supports Three Sizes of Display (320x240, 480x272, and 800x480)
  • Board contains two Atmel 328P chips on board (equivalent of two UNOs)
  • Atmel0 runs the LCD Display
  • Atmel1 runs the shield. Pin for pin compatible with the UNO.
  • Library Code is adapted from http://www.rinkydinkelectronics.com/library.php?id=51
  • You can find the modified library at https://github.com/evanwilliamsconsulting/utft
  • Unzip this file in the libraries folder of your Arduino installation
  • Demonstration programs for the LCD Display Board are located at https://github.com/evanwilliamsconsulting.com/arduino
  • Projects that are prefixed UTFT_ should be uploaded to Atmel0 to control the LCD Display. Otherwise the projects can run on Atmel1 and communicate with Atmel0.
  • There are several errors on the printed circuit board on Version 1.1. A version 1.2 of the board will be issued.
Specifics

Product

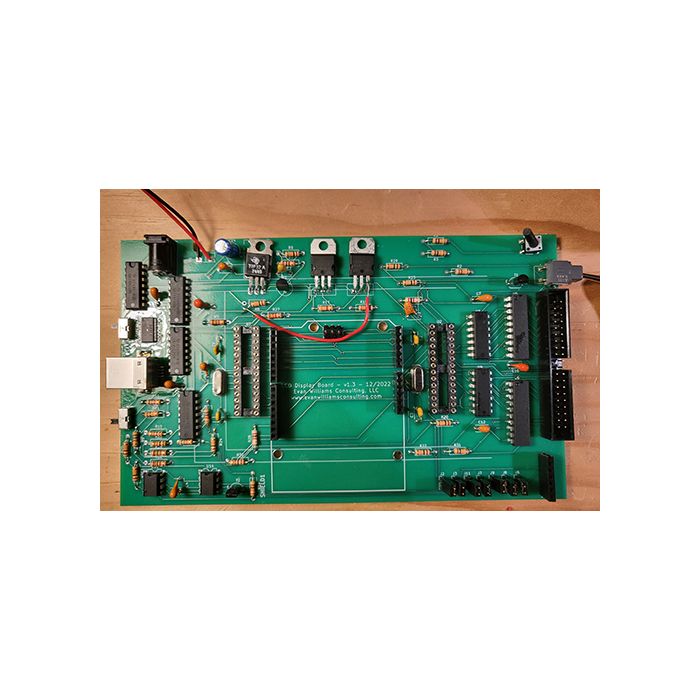

LCD Display Board (Assembled)

Evan Williams' Consulting's LCD Dispaly Board is a great device for hobbyists and other electronic enthusiasts! LCD Display Board Dual-MCU Controller Board.

  • SKU EWC001

$99.00

See Product >
